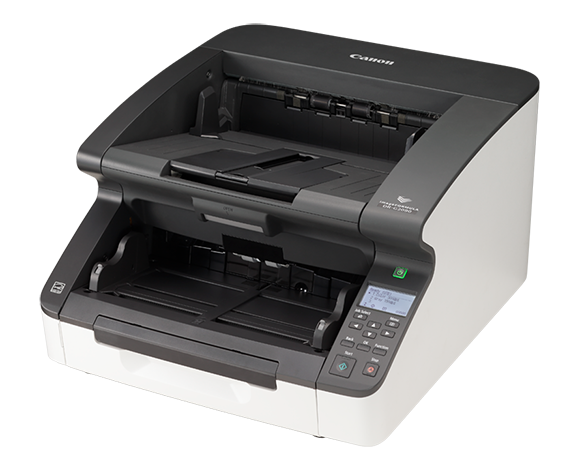

Canon imageFORMULA DR-G2090 Sheetfeed Scanner
The Canon imageFORMULA DR-G2090 production document scanner with USB-only connectivity provides a high-performance, reliable, and flexible scanning solution recommended for non-networked environments where Ethernet connectivity is not required.
Wide Variety of Applications.
The DR-G2090 scanner is ideal for processing large amounts of documents in mission-critical, centralized production scanning environments. It has been developed to withstand the rigors of production-level scanning while maintaining high-speed, high quality imaging. The DR-G2090 scanner can help businesses improve productivity, maintain continuity, increase efficiencies and securely manage information.
High Performance.
The DR-G2090 scanner handles up to 90 pages per minute—both sides in a single pass*—and holds up to 300 sheets in the ADF. It is also equipped with a dedicated, onboard image processing chip, making it capable of maintaining fast scanning speeds, independent of PC environment. These features all help contribute to improve productivity. *Examples based on typical settings, rated in pages/images per minute with letter-sized documents, landscape feeding direction, up to 300 dpi. Actual processing speeds may vary based on PC performance and application software.
Reliable and Flexible.
The DR-G2090 scanner is flexible enough to reliably handle a variety of document types, from business cards to ledger-sized long documents, and thin or thick documents,** using its advanced feeding mechanism. This helps reduce labour-intensive pre-sorting and job preparation. Plus, double-feed deteciton helps to ensure that no data is lost. A durable, solid-body design as well as heavy-duty feed and eject trays contribute to the scanner's reliability. ** See specifications for further detail on document types.
Efficient, Smooth Operation.
The DR-G2090 USB scanner features an intuitive control panel that allows easy access to scanner settings, and user-programmable job buttons for one-touch operation. This scanner is also equipped with a motorized paper feed tray that can be adjusted to the height of the batch, and flexible paper feed and output guides. This, plus the ability to handle a variety of document types,** allows for unattended batch scanning which can optimize workflows and increase efficiencies. ** See specifications for further detail on document types.
Product Specifications
Type |
Production Document Scanner
|
Document Feeding |
Automatic or Manual
|
Document Size |
Width: 2” - 12”; Length: 2.8” - 17”
|
Long Document Mode |
Up to 118.1”
|
Document Weight |
Automatic Feeding: 14 - 56 lb. Bond; Manual Feeding: 14 - 56 lb. Bond
|
Feeder Capacity |
Up to 300 Sheets
|
Greyscale |
8-bit
|
Colour |
24-bit
|
Scanning Element |
Three-Line Contact Image Sensor (CIS)
|
Light Source |
RGB LED
|
Scanning Modes |
Colour, Greyscale, Black and White
|
Colour Dropout |
RGB and Custom
|
Optical Resolution |
Up to 600 dpi
|
Output Resolution (dpi) |
100/150/200/240/300/400/600/Custom
|
Scanning Speeds |
Simplex BW/Greyscale/Colour: Up to 90 ppm; Duplex BW/Greyscale/Colour: Up to 180 ipm. Examples based on typical settings, rated in pages/images per minute with letter-sized documents, portrait feeding direction, up to 200 dpi. Actual processing speeds may vary based on PC performance and application software.
|
Interface |
Hi-Speed USB 3.1
|
Dimensions (H x W x D) |
12.4" x 18.9" x 22.4" (trays closed)
|
Weight |
55.1 lb.
|
Power Consumption |
66.5 W or less (Energy Saving Mode: 3.5 W)
|
Supported OS |
Windows® 7 SP1/8.1/10 (32-bit/64-bit) or later, Windows® Server 2008 R2/2012 R2/2016
|
Scanner Drivers |
ISIS/TWAIN
|
Suggested Daily Volume |
30,000 (Calculations based on scanning speed and assumed daily time of use).
|
Bundled Software |
Canon CaptureOnTouch, Kofax VRS Professional
|
Options |
Flatbed Scanner Unit 102 and 201
|
Other Features |
Auto Colour Detection, Auto Page Size Detection, Active Thresholding, Batch Separation, Character Emphasis, Count Only Mode, Custom Colour Dropout/Enhance Colour, Deskew, Double-Feed Detection, Edge Emphasis, Folio Scan, Image Rotation, Moiré Reduction, MultiStream, Paper Feed Tray (Adjustable), Pre-Scan, Prevent Bleed-Through/Remove Background, Punch Hole Removal, Rapid Recovery System, Skip Blank Page, Staple Detection, Text Enhancement, Text Orientation Recognition, Three-Dimensional Colour Correction, User Preferences, Verify Scan
|
